This concept of calibration is to display the comparison of line items evaluated by various calibrations and a master calibrator. The least eligibility for a user to be a calibrator is QA Supervisor. The access rights to a user for calibration and associated processes are given by Admin. This module also includes the relative reports of the entire process.
Access Rights
To start the calibration process, it is necessary for the user to have access rights. Admin can select Manage > User and the Manage Users page will be displayed.

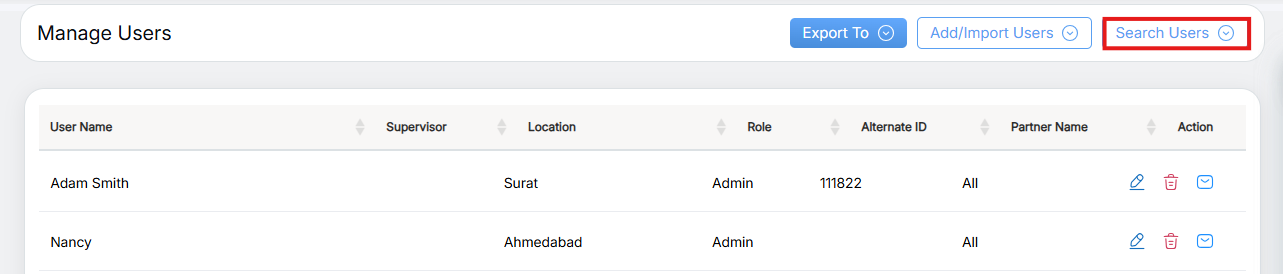

Click on the Search Users button to search for a particular user.

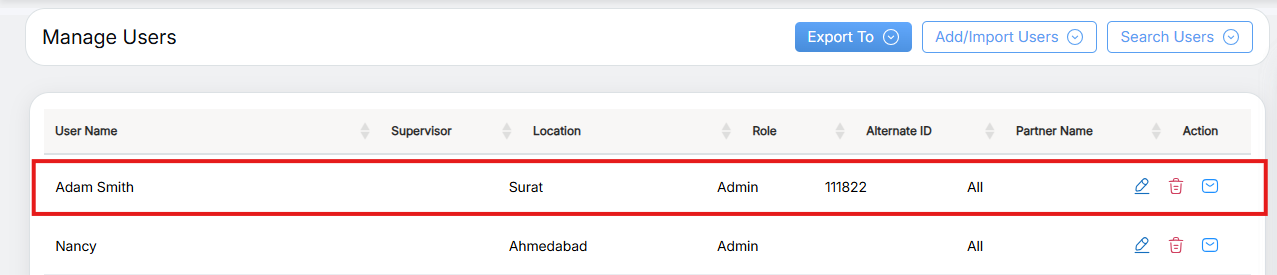

Search Results: User
Click on the Edit

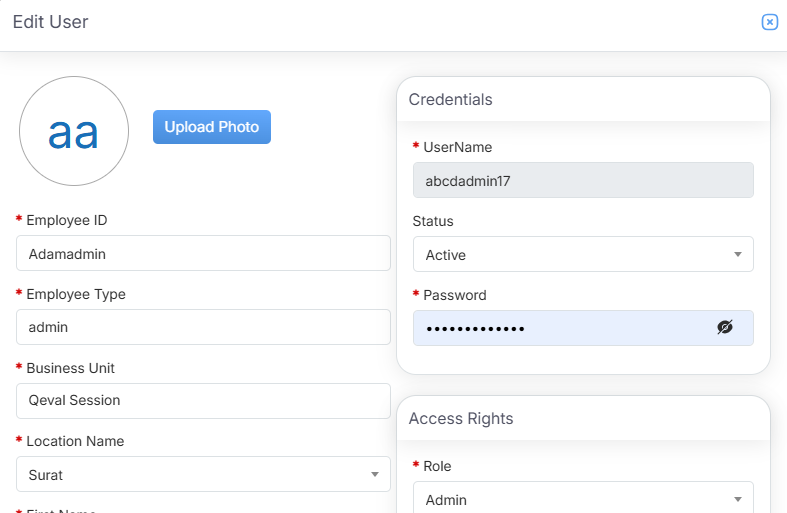

icon displayed under the Action column to edit any details of a particular user and the Edit User window will be displayed as shown below:
Edit User Details

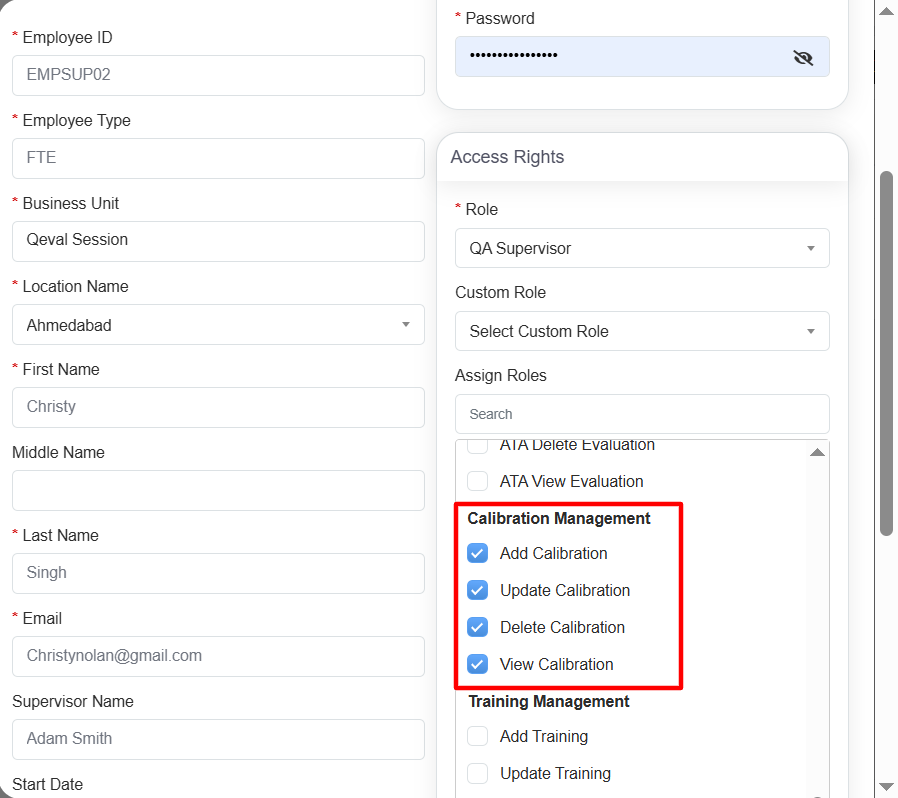

From the Access Rights section, select the checkbox(es) displayed under Calibration Management section as shown below:
Calibration Management
Once, the changes are made click on the Update button.
Calibration

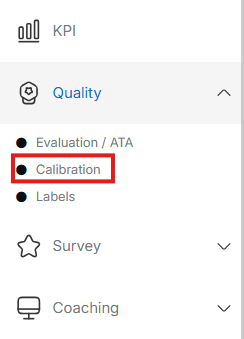

The user with calibration rights can select Quality > Calibrations as shown in the below screen:
Quality: Calibration

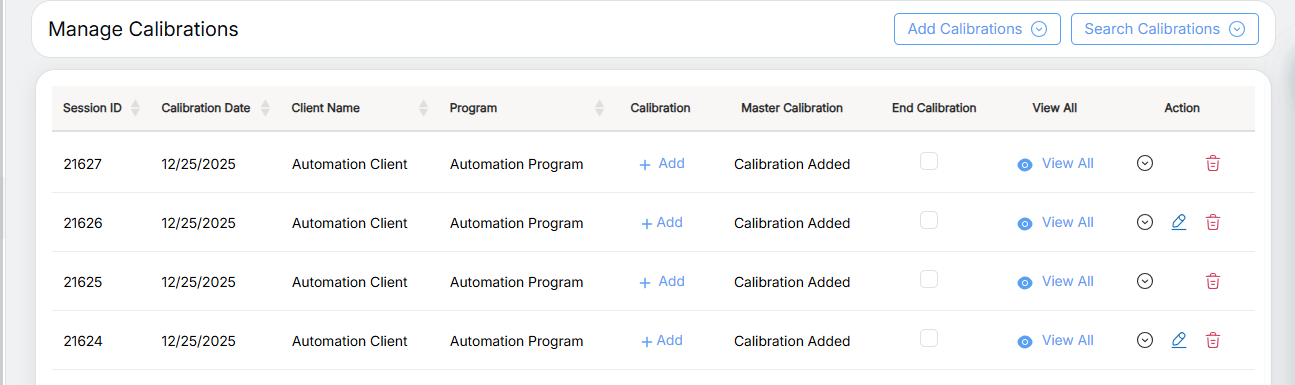

The Manage Calibrations page appears:
Manage Calibrations
This page displays the list of all the calibrations that are already created.
Add Calibration
To add the calibration follow the steps given below:
Click on the Add Calibration button.

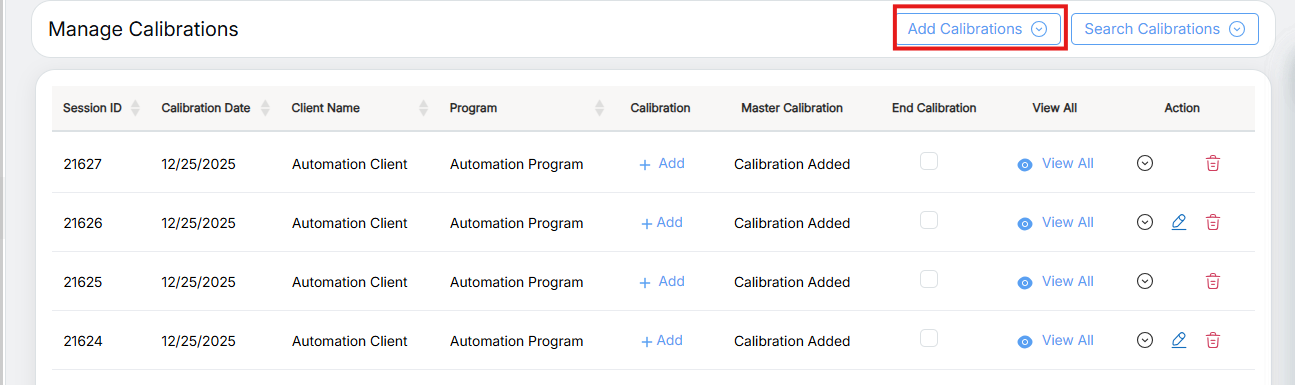

Add Calibrations

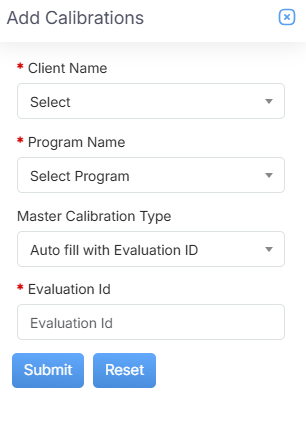

The following screen will be displayed:
Add Calibrations
The elements of the Add Calibrations popup are as follows-
|
Screen Elements |
Description |
|---|---|
|
Client Name |
Select the Client Name from the dropdown list. |
|
Program Name |
Select the Program name from the dropdown list which will display the Program Names as per the selection of the Client Name. |
|
Master Calibration Type |
Select the appropriate master calibration type from the available options: “Auto Fill with Evaluation ID” or “Manual.” |
|
Evaluation ID |
The Evaluation ID field will be enabled if “Auto Fill with Evaluation ID” is selected as the master calibration type. If “Manual” is selected, the field will remain disabled. |
Click
button to add the calibration, or click
button to reset the fields.
On clicking the submit button the following acknowledgment message will be displayed as shown on the screen below.

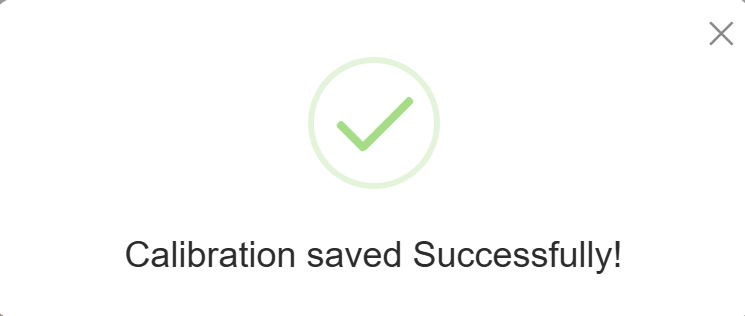

Calibration saved acknowledgement
The newly added Calibration will be displayed on the Manage Calibration page.
Manage Calibration
Master Calibration Process

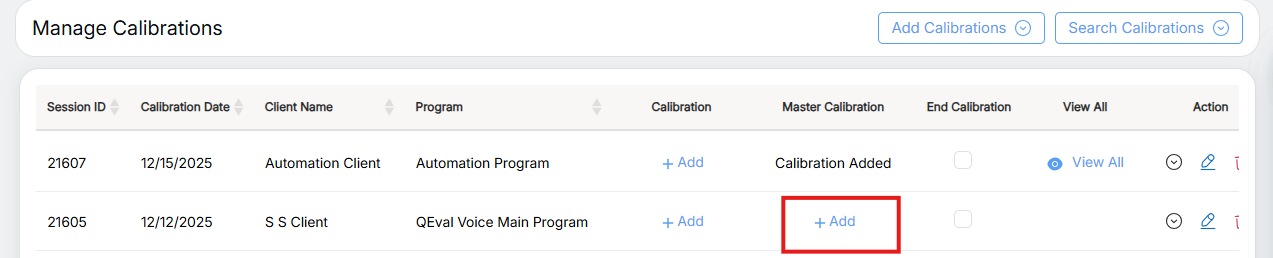

To perform the master calibration, click on Add under the Master Calibration column from the Manage Calibration page, to perform the calibration as shown below:
Master Calibration: Add

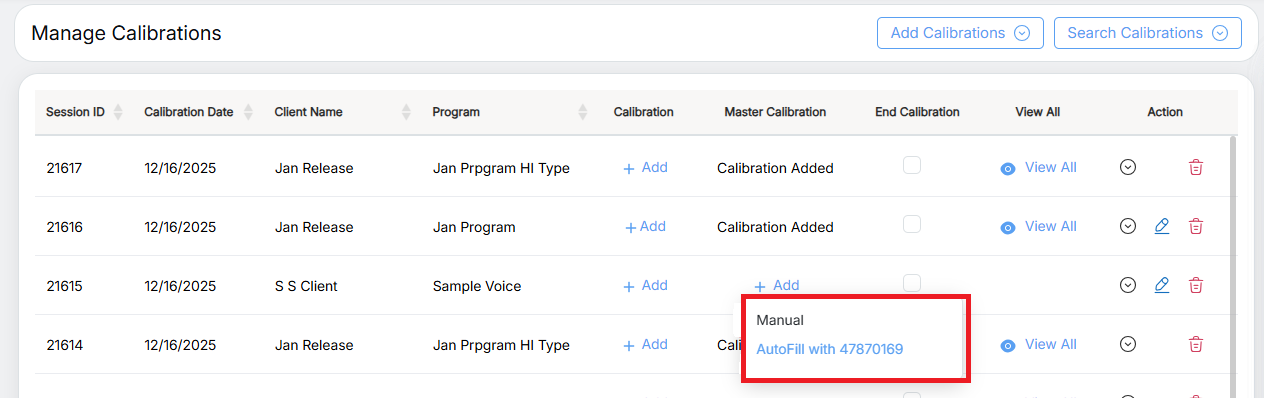

Clicking the Add button opens a dropdown menu with the options Manual and Evaluation, as shown in the screen below-
Calibration Types
Click on the Manual option from the drop-down menu to add the details manually in the system –
Manual Calibration

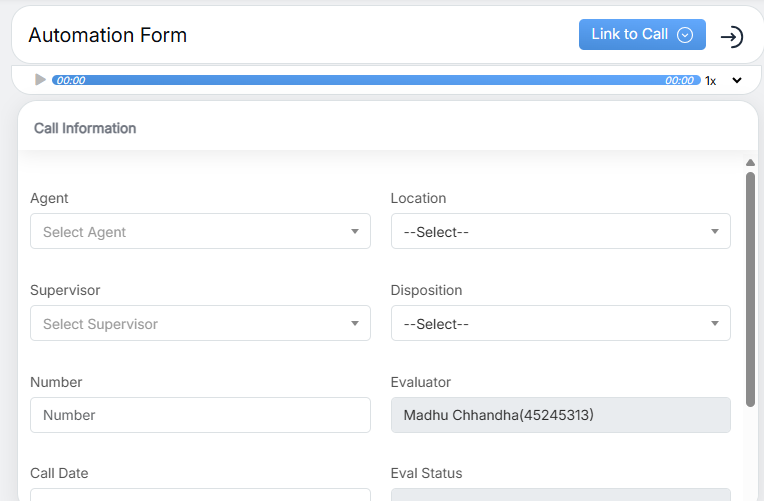

Upon clicking on the Manual option from the drop-down, the following evaluation form of the specific client and program will be displayed:
Once the master calibration process is completed by providing all the details in the evaluation form, click on the
button. To know more about the configurations of evaluation, refer to Evaluation / ATA.
The following confirmatory message will be displayed:

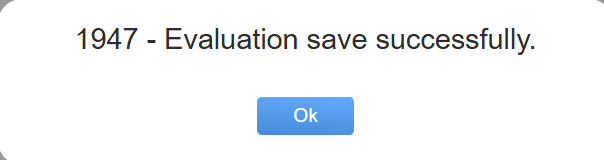

Acknowledgement message of Evaluation saved

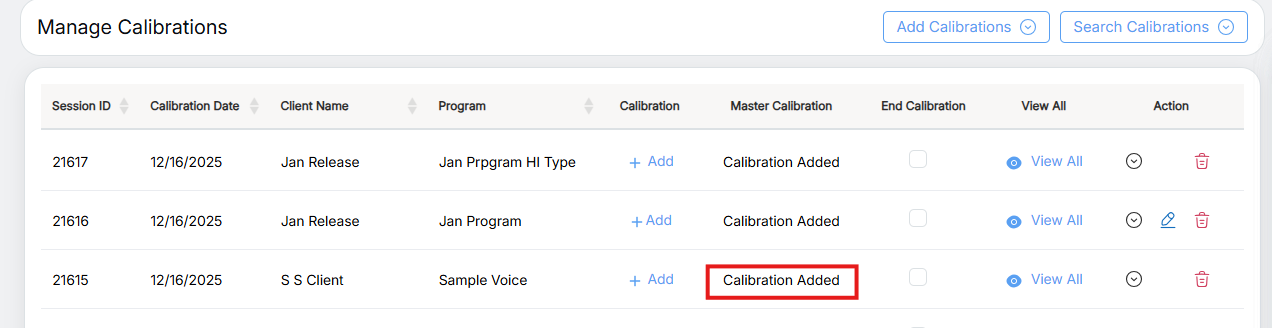

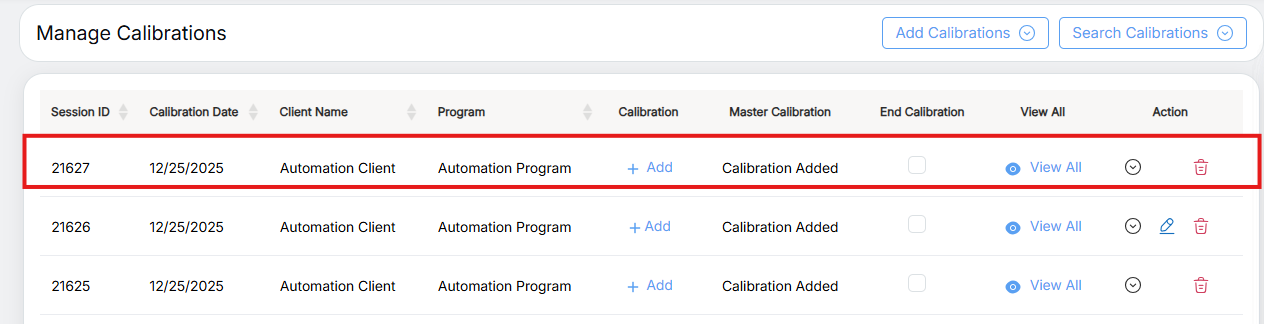

Click on the OK button. This will redirect the user to the Manage Calibration page and the Master Calibration column will display Calibration Added for the specific client and program.
Calibration Added
Users can initiate Master Calibration by selecting the Autofill with Evaluation ID option.

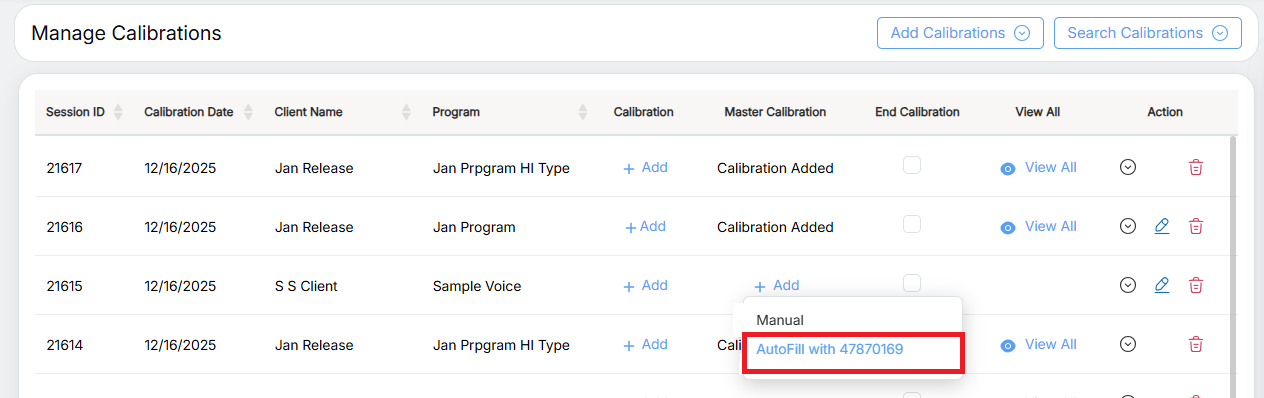

Autofill with Evaluation ID
This will redirect the user to the Manage Calibration page and the Master Calibration column will display Calibration Added for the specific client and program.
Calibration Added
Calibration Process

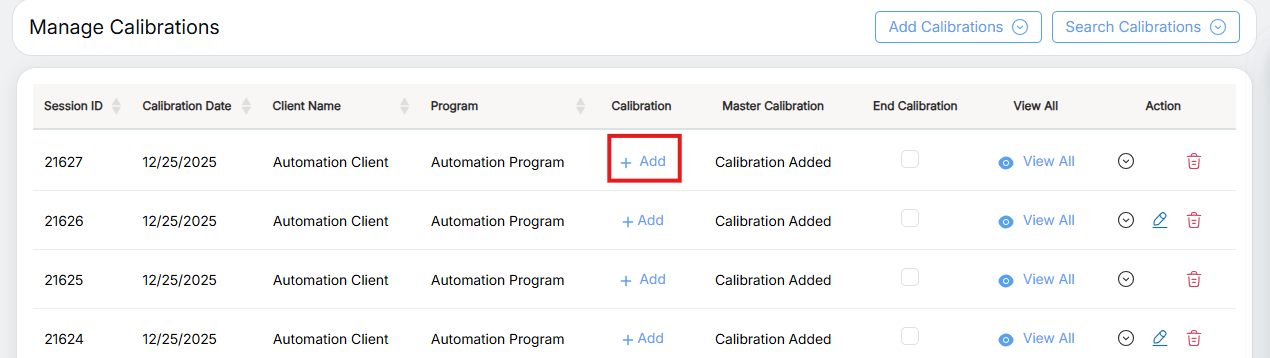

The next step is to initiate the calibration process.
Add Calibration

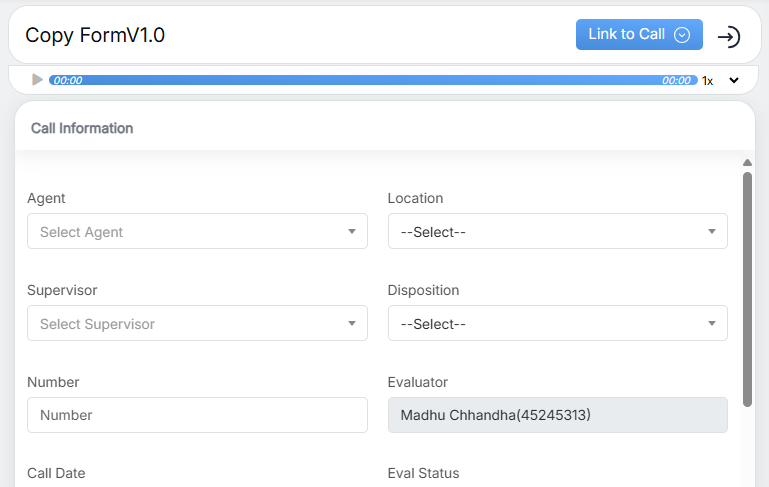

The user will be directed to the Evaluation Form for calibration as shown below:

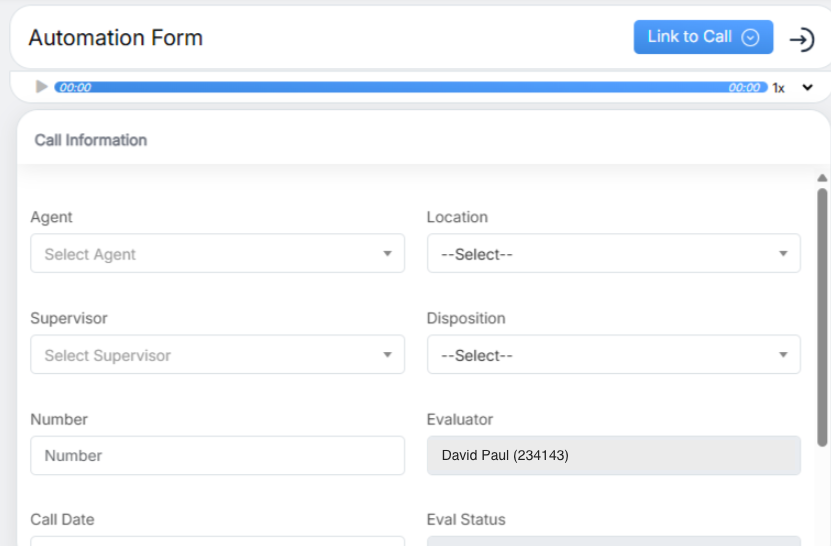

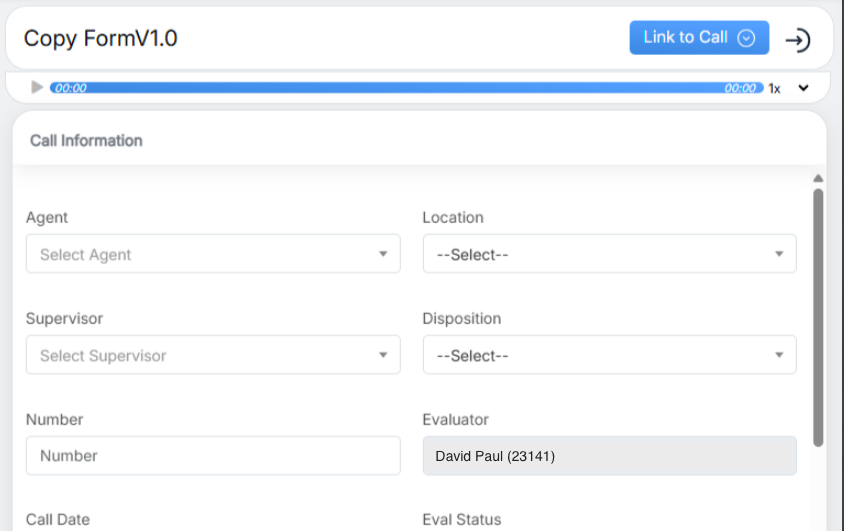

Evaluation Form for Calibration
Once the calibration process is completed by providing all the details in the evaluation form, click on the button.
The following confirmatory message will be displayed:
Acknowledgement Message

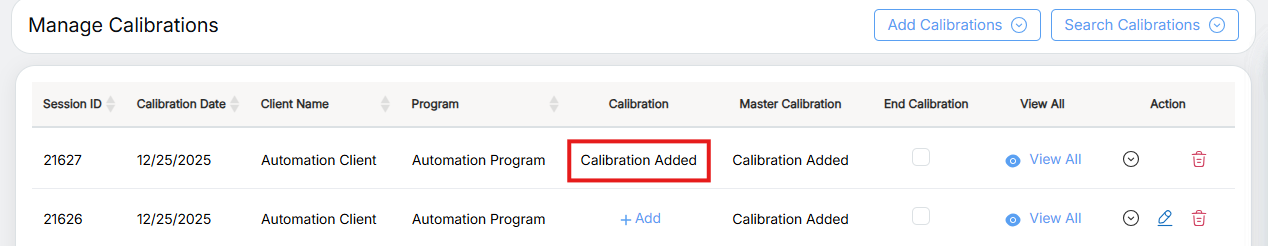

Click on the OK button. This will redirect the user to the Manage Calibration page and the Calibration column will display Calibration Added for the specific client and program.
Calibration Added
Once the calibration and master calibration processes are completed for any client and program, one can view all its details, update the details, delete the details, and end the calibration. From the Manage Calibration page, one can search for any specific calibration. To know more about these functionalities, refer to Manage Calibration.

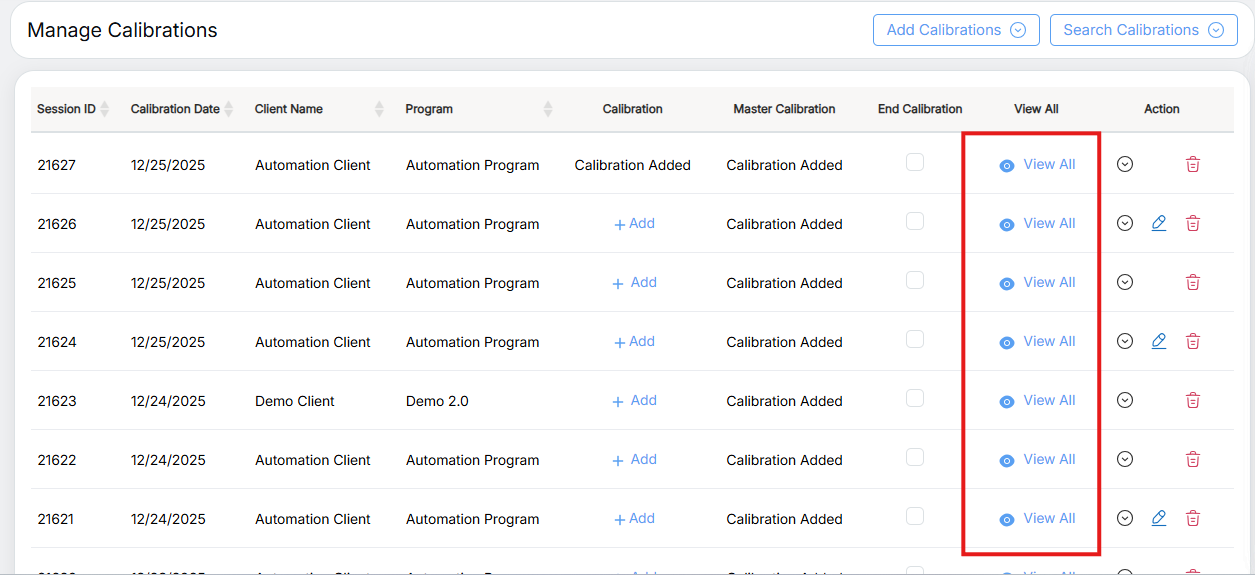

To view detailed information about a specific calibration, click on the View All option, as demonstrated in the screenshot below –
View All

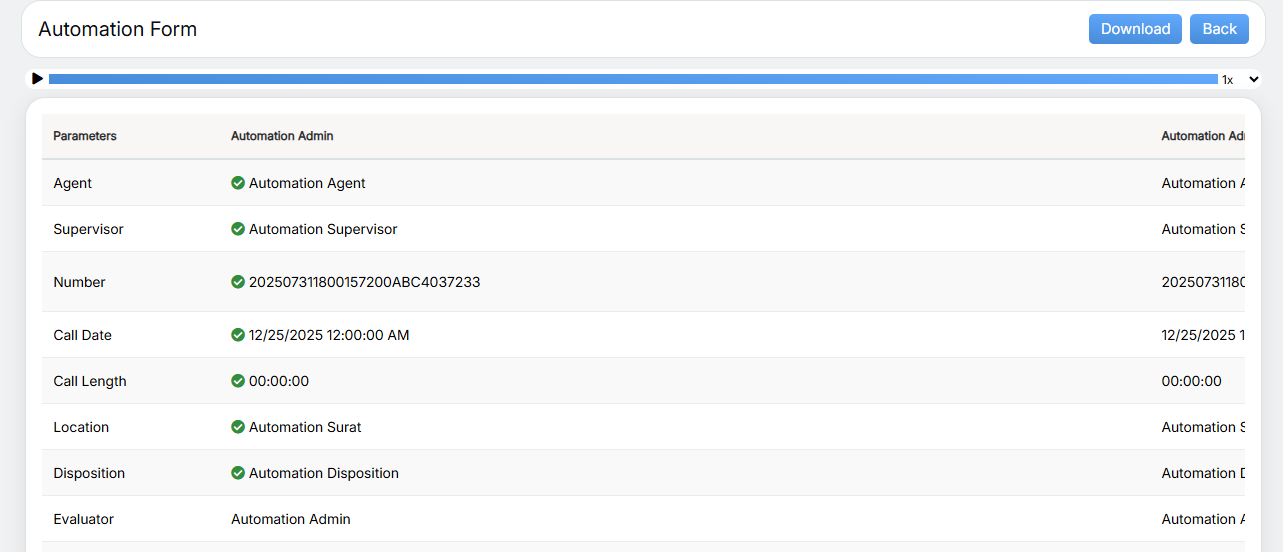

The user will be redirected to the Category Score page, where the user can click the Download button to access and download detailed information for further analysis or reference.
Download Button
